Custom CNC Machining Services of Parts, Products & Components

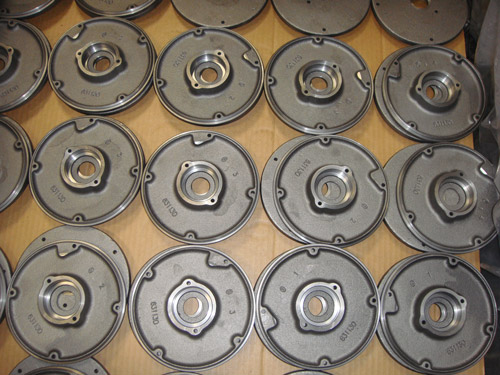

Precision CNC Machined Parts
Precision CNC Machined Parts

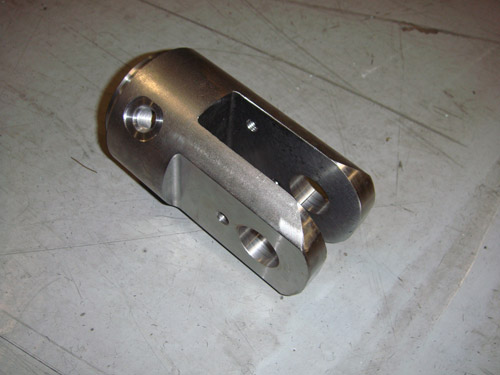

Custom CNC Machined Products
Custom CNC Machined Products

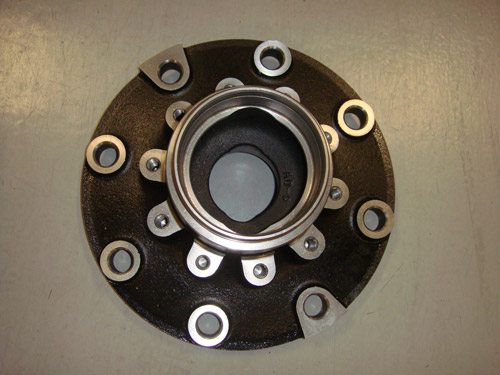

Custom Finish Machining of Steel Parts
Custom Finish Machining of Steel Parts

(click on thumbnail to enlarge)

Swihart Industries, Inc., offers precision CNC machining services to a range of industries and a variety of applications. Our newly expanded ISO 9001:2008 and TS 16949:2009 certified facility boasts state-of-the-art equipment including vertical and horizontal machining centers featuring 3, 4, and 5 axes and CNC controlling options. Advanced fixturing options include three jaw chuck fixturing, robotic load/unload, automated spindle and tool changer. In-house fixturing and tooling are also available. We are able to expertly and efficiently machine custom parts utilizing various machining processes including turning, milling, threading, facing, and broaching. Our capabilities allow for production volumes from prototype to long run, with typical turnaround times of 4-6 weeks for new custom parts, and 1 week for repeat orders.

Materials we work with include gray iron, ductile iron, steel, tin, nickel, aluminum, stainless and forged alloy among others. We have the capability to machine parts up to 2,000 lbs., reaching sizes of 59.8" long, 31.5" wide, and 32" high, and up to 31.5" in diameter while holding tight tolerances of ± 0002". At Swihart we're serious about quality, holding our work to the highest industry standards and integrating quality control measures into every step of our process such as various testing protocols, and CMM for digital inspections. Other services we offer include engineering, logistics, warehousing, welding, and assembly.

For more information about our precision CNC machining services or the other value added services we offer, please see the table below or contact us directly.

Request Quote

Our Showcase of Custom CNC Machined Projects

Precision CNC Machining Capabilities

Machining Processes
Milling
Drilling
Boring
Turning
  • Contour Turning
  • Form Turning
  • Taper Turning
  • Straight Turning
Threading (Single Point)
  • External
  • Internal
Tapping
Counterboring
Countersinking
Facing
Broaching
Equipment Capabilities
CNC Control Capabilities
Horizontal Machining Centers
Vertical Machining Centers
Horizontal Turning Centers
Vertical Twin Spindle Turning Centers
Multi-Task Lathe/Mill (Dual Turning & Milling Spindle)
Machinery Axis 3, 4, 5
Fixturing
In-House Fixturing & Tooling
Three-Jaw Chuck
Twin Pallets
Automated Spindle
Tool Changer
Robotic Load / Unload (Pick & Place)
Materials Used
Gray Iron
Ductile Iron
Aluminum
Stainless Steel
Steel
Cast Iron
Forged Alloy
Tin
Nickel
Turning Diameter Up to 31.5 in.
Milling Length (X) Up to 59.8 in.
Milling Width (Y) Up to 31.5 in.
Milling Height (Z) Up to 32 in.
Maximum Part Weight 2,000 lbs.
Tolerance ± .0002 in.
Process Capability 1.33
Process Performance Ppk 1.67
Secondary Services Offered
Engineering
Deburring
Broaching
Welding
Painting
Plating
Assembly
Packaging
Logistics and Scheduling
Transportation Routes
Inventory Management
Paperwork Reduction
Advanced Shipping Notices (ASN)
Barcoding
Warehousing
Testing Dimensional
Inspection 100% Layout
1st Piece Inspections
In-Process Verifications
Process Manuals Production Part Approval Process (PPAP)
Advanced Product Quality Planning (APQP)
Statistical Process Control (SPC)
Quality Control Coordinate Measuring Machines (CMM)
Automatic Tip / Probe Changer
Calibrated Measuring Instruments and Gages
Production Volume Prototype to Production
Lead Times Available 4 to 6 weeks (New)
1 week (Repeat)
Delivery 99.8% On-Time
Supply Chain Management KanBan
Inventory Management / Stocking Program
Supplier and Process Management

Additional Information

Industries Served
Transportation
Medium & Heavy Trucking
Automotive
Commercial Vehicles
Energy
Food Processing Equipment
Hydraulics
Gas Compression
Intended Applications
Wheel Hubs
Cylinders
Rotors
Brake Calipers
Rotary Compressors
Reciprocating Compressors
Power Generation / Distribution
Motor Housings
Wheels
Pulleys
Pistons
Industrial Food Equipment
Industry Standards Met ISO 9001:2008 Certified
TS 16949:2009 Certified
Software Utilized
SolidWorks
Vericut ToolPath
MasterCAM
QC-Calc (SPC)
S CMM Manager
OpenDMIS
Adobe PDF
Images (JPG, GIF, TIFF, BMP)
