Finish Machining of Cast Metal Main Frames for the Motion Control Products Industry

Finish Machining of Cast Metal Main Frame
Finish Machining of Cast Metal Main Frame
CNC Machining Services of Cast Metal Frame
CNC Machining Services of Cast Metal Frame
Cast Metal Main Frame
Cast Metal Main Frame

(click on thumbnail to enlarge)

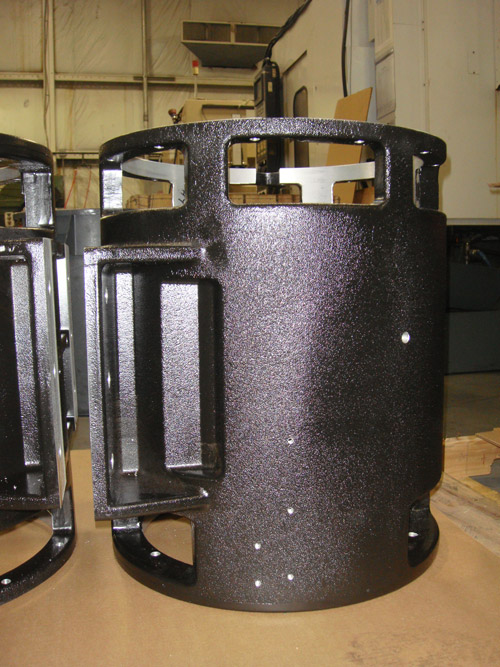

Swihart Industries, Inc.'s precision CNC machining services allow us to machine intricate parts used in a variety of industries. This cast metal main frame was machined for use in the motion control industry. We received this project from a customer we were already making smaller parts for. This component was being machined by a foreign supplier, but the customer was having consistent quality issues with the machining quality on the part. Our customer was so happy with our precision machining, detailed inspection, communication, and delivery services that not only have we continued to manufacture this part, but we have been awarded contracts on additional components.

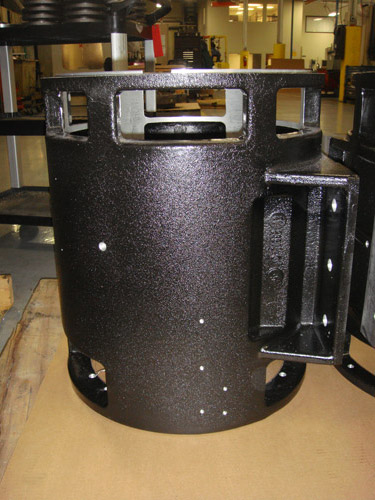

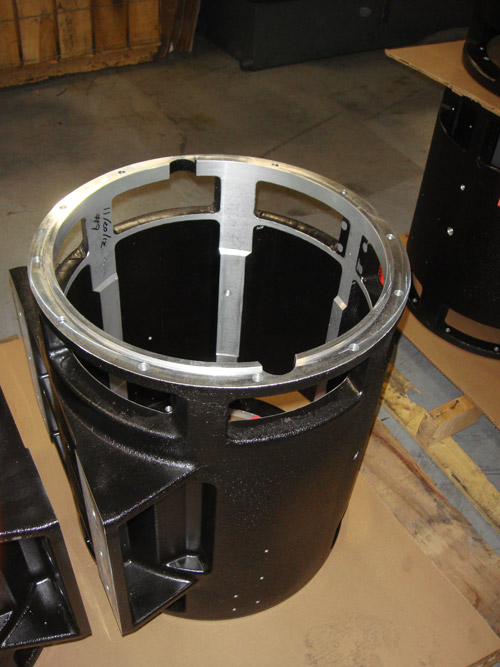

The cylindrical main frame has an outer diameter of 17.75" and measures 20.969" high. After machining in our Mori Seiki horizontal machining center, the frame underwent detailed dimensional inspection using our coordinate measuring machine (CMM) to ensure all dimensions conformed to customer specifications. Due to the extensive number of slots and holes machined into this part, dimensional conformance is critical for later part fit-up. Our turnaround time on this part is 1-2 weeks to our customer in Texas. For more information about this project, see the table below, or contact us directly.

Request Quote

Highlights of this Precision CNC Machining Project

CNC Machining Capabilities Applied/Processes Primary:
CNC Turning
CNC Milling
Secondary:
Deburring
Overall Part Dimensions OD: Ø17.75"
Width of Foot: 17.75"
Height: 20.969"
Tightest Tolerances +/- .0025"
Material Used Metal Casting
In Process Testing/Inspection Performed Dimensional Inspection, Visual Inspection
Industry for Use Electrical and Mechanical Motion Control Products
Volume 64
Delivery Location Texas
Standards Met Customer Specifications, 2D CAD Drawing
Product Name 360 Main Frame
